ADS-1201 : Analog-to-Digital Converter for High Temperature Applications
May 1, 2013
- 12-bit resolution
- 1MHz sampling rate
- Extended temperature range -55°C to 200°C
- 28-pin DDIP or SMT package
- No missing codes
DATEL today announced the introduction of a new line of data acquisition products that are guaranteed at -55°C to 200°C. The reliable ADS-1201 series is a 12-bit, 1MHz analog to digital converter housed in a small 28-pin DDIP or SMT hermetically sealed ceramic package. Each unit is 100 percent tested for performance in the -55°C to 200°C temperature range to assure compliance with all published specifications. In addition, the ADS-1201 has no latency delays, which enables it to be used in multiplexed analog input applications. Other key benefits include unipolar and bipolar input range, guaranteed 1,000-hour continuous operating life at 200°C, and precision internal reference to provide guaranteed tight static specifications.
The advanced technology behind the dependable new converter line is responsible for its superior performance at extreme high temperatures. Specifically, the ADS-1201 series is fabricated on thick film ceramic, with low temperature drift thin film resistors on 96 percent alumina substrate and 250°C rated passive components. All of the ultrasonic and thermo-sonically wire bonded high temperature ICs are qualified and characterized to meet the demanding -55 to +200°C operating temperature. The ADS-1201 series was developed and is manufactured using processes that originate with DATEL's MIL-PRF-38534 standards and controls in a certified Class H facility in Massachusetts. There are fewer than 40 Class H facilities in the world, making DATEL’s capabilities all the more competitive.
"DATEL’s reliable and rugged converters are a product of tireless research and mark the start of our expanding high-temperature product line," said Tony Khazen, Director of the DATEL Business Unit. "With DATEL’s technical expertise and commitment to quality, customers can expect additional products designed for harsh environment markets."

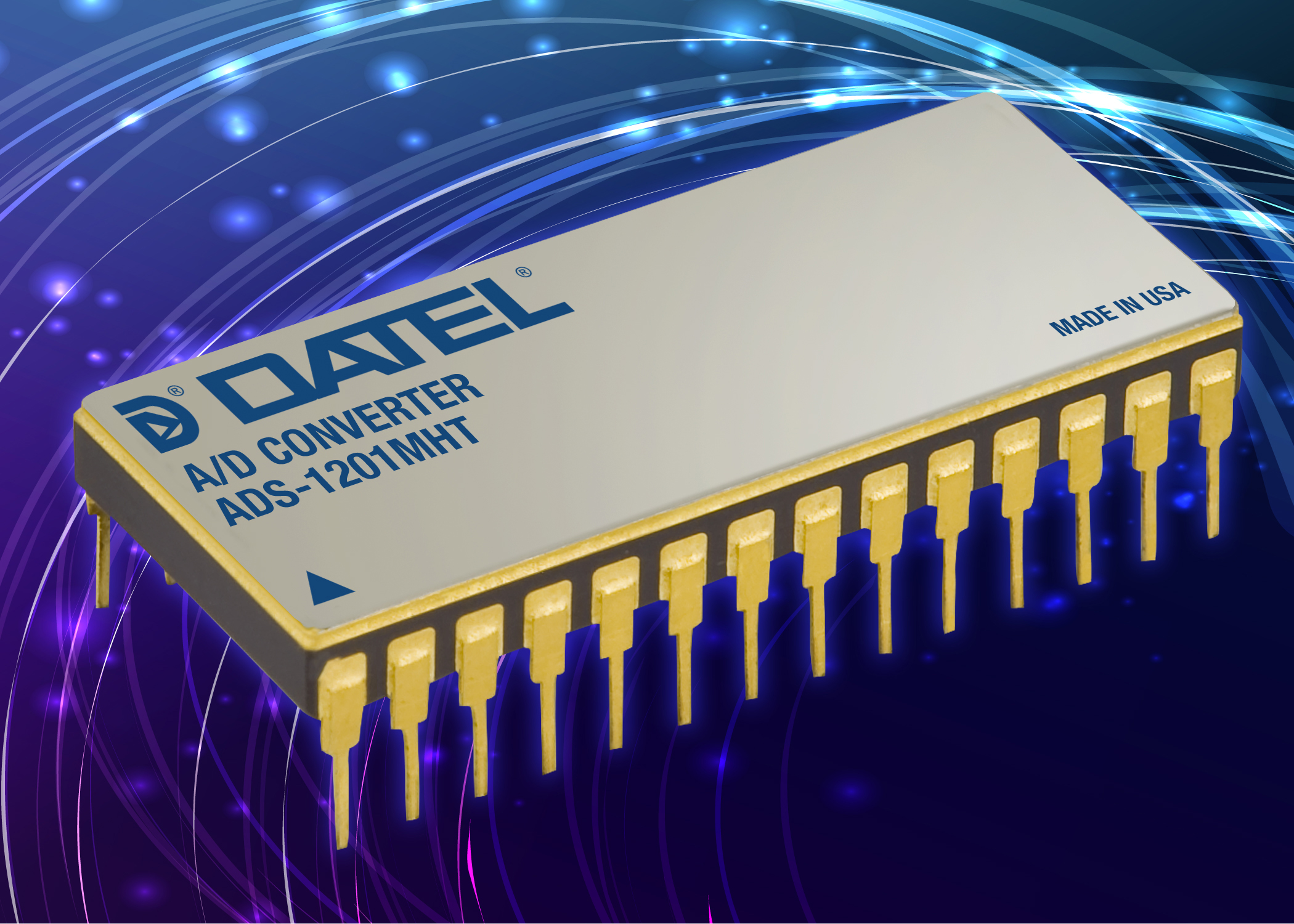

The rugged ADS-1201 series is available in two options, the 28-pin DIP package (ADS-1201MHT) and the 28-pin SMT package (ADS-1201GHT). Additional models are in development.
Further editorial information from:
Tony Khazen
Title: DATEL Business Unit Director
Datel
Tel: +1-508-964-5251
E-mail: tonykhazen@datel.com
Contact details for publication:
Datel
11 Cabot Boulevard
Mansfield, MA 02048-1151, USA
Tel: +1-508-339-3000
e-mail: tonykhazen@datel.com
About Datel (www.datel.com)
Dedicated to the military and aerospace market solutions, DATEL is a business unit of Murata Power Solutions. For several decades DATEL has worked closely with defense and Hi-Rel companies to provide fully qualified and MIL Certified 883 components that meet customers' specific and stringent application requirements.
DATEL data acquisition products are designed and manufactured in an 180,000 square-foot, MIL-PRF-38534 hybrid certified fabrication facility located in Mansfield, Massachusetts, USA. The data acquisition product offering has grown to become one of the industry's broadest, designed to meet the ever-changing requirements of military, HI-REL, medical, scientific and industrial applications. DATEL are ISO-9001 certified, and ITAR registered.
