DATEL Analog Front End for CCD imaging applications
The ADCDS-1801 is an 18-bit, industry-leading, integrated solution for CCD Signal Processing. This series of analog front-end imaging converter is designed specifically for the very high-resolution imaging applications.
- June 23, 2016
- 12-bit resolution
- Internal 18-bit resolution A/D
- Internal correlated double sampler (CDS)
- 1.250 Mega-Samples per second
- Analog front-end programmable bandwidth
- Low-profile 44-pin plastic SMT Quad-Pak
- Extended temperature range -40°C to +125°C
- 31µV RMS noise @ 1.25 MPPS
- Resistor programmable gain adjustment from 0dB to 15.5dB
- User selectable digital output supply voltage range
- 12-bit resolution

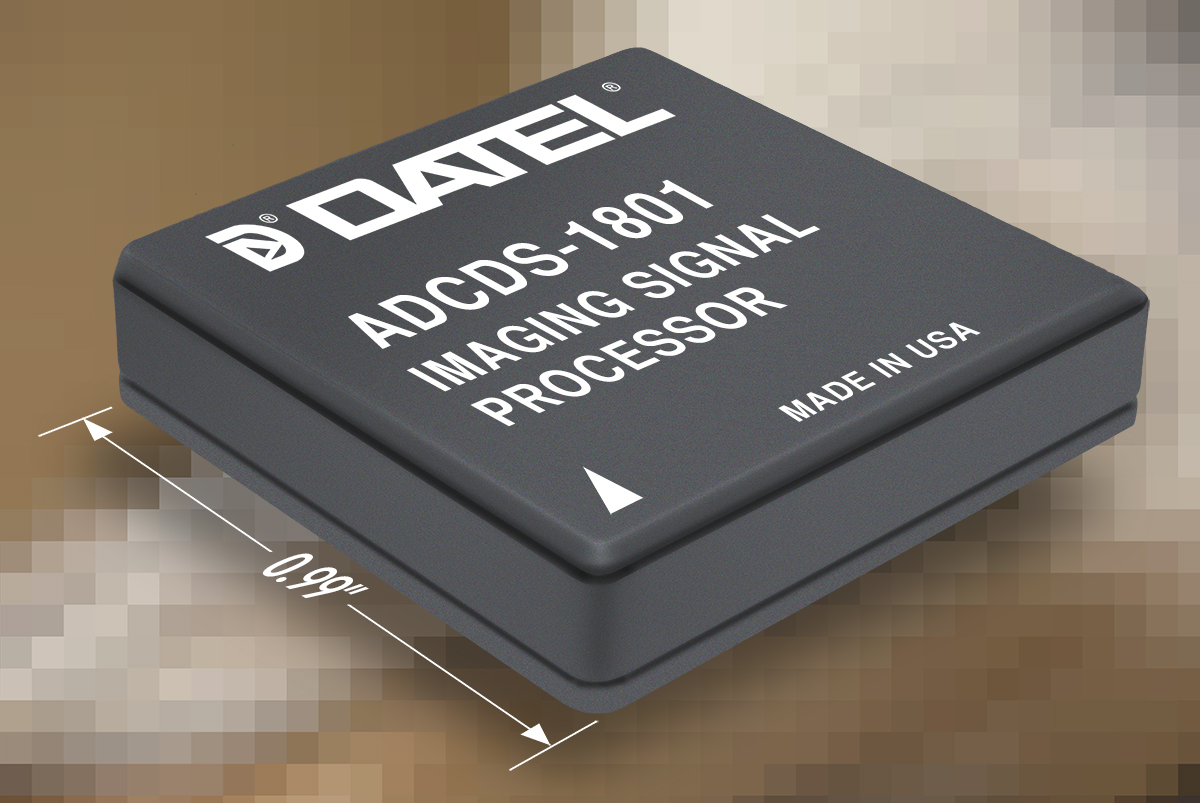

DATEL, Inc. has announced the introduction of the ADCDS-1801 Series, a new line of analog front-end converters for imaging applications that use area-CCD array detectors. The ADCDS-1801 incorporates a user configurable input amplifier, a low noise correlated double sampler (CDS) and an 18-bit sampling A/D converter in a single package. This provides the user with a complete, high performance, low-cost, low-power, integrated solution.
The key to the ADCDS-1801's performance is a unique, high-speed, high-accuracy CDS circuit, which eliminates the effects of residual charge, charge injection and "kT/C" noise on the CCD's output floating capacitor, producing the pixel's output signal. The ADCDS-1801 digitizes this resultant pixel signal using a high-speed, low-noise sampling A/D converter. At 31µV of RMS noise, the ADCDS-1801 is the best choice for all high resolution imaging applications.
The ADCDS-1801 is offered in a small 44-pin, SMT plastic package as a commercial grade (0 to +70C) or extended temperature grade (-40 to +100C). It features gain adjust, offset adjust, a precision +2.048V reference, a user selectable OVDD supply voltage range of 2.5V, to 3.3V, and a programmable analog bandwidth function.
Samples are available upon request.
In addition to our standard product offerings, DATEL is a leader in providing System in a Package Solutions (SIP) for all special applications and Pin-to-Pin replacements for any existing or obsolete component.
