ADCDS-1603 Imaging Signal Processor Provides High-Performance Functionality, Simple Interface, for a Complete Solution

ADCDS-1603 Imaging Signal Processor Provides High-Performance Functionality, Simple Interface, for a Complete Solution 16-Bit, 3 megapixels/second imaging signal processor
  • October 10, 2006

    • 16-bit resolution
    • 3MPPS throughput rate (16-bits)
    • Functionally complete
    • Very low noise
    • Excellent signal-to-noise ratio (85db)
    • Edge triggered
    • Small, 40-pin, TDIP package
    • Low power, 500mW typical
    • Low cost
    • Programmable analog input bandwidth

  • Data Sheet : Imaging Signal Processor : ADCDS-1603

  • Request Information : Imaging Signal Processor : ADCDS-1603

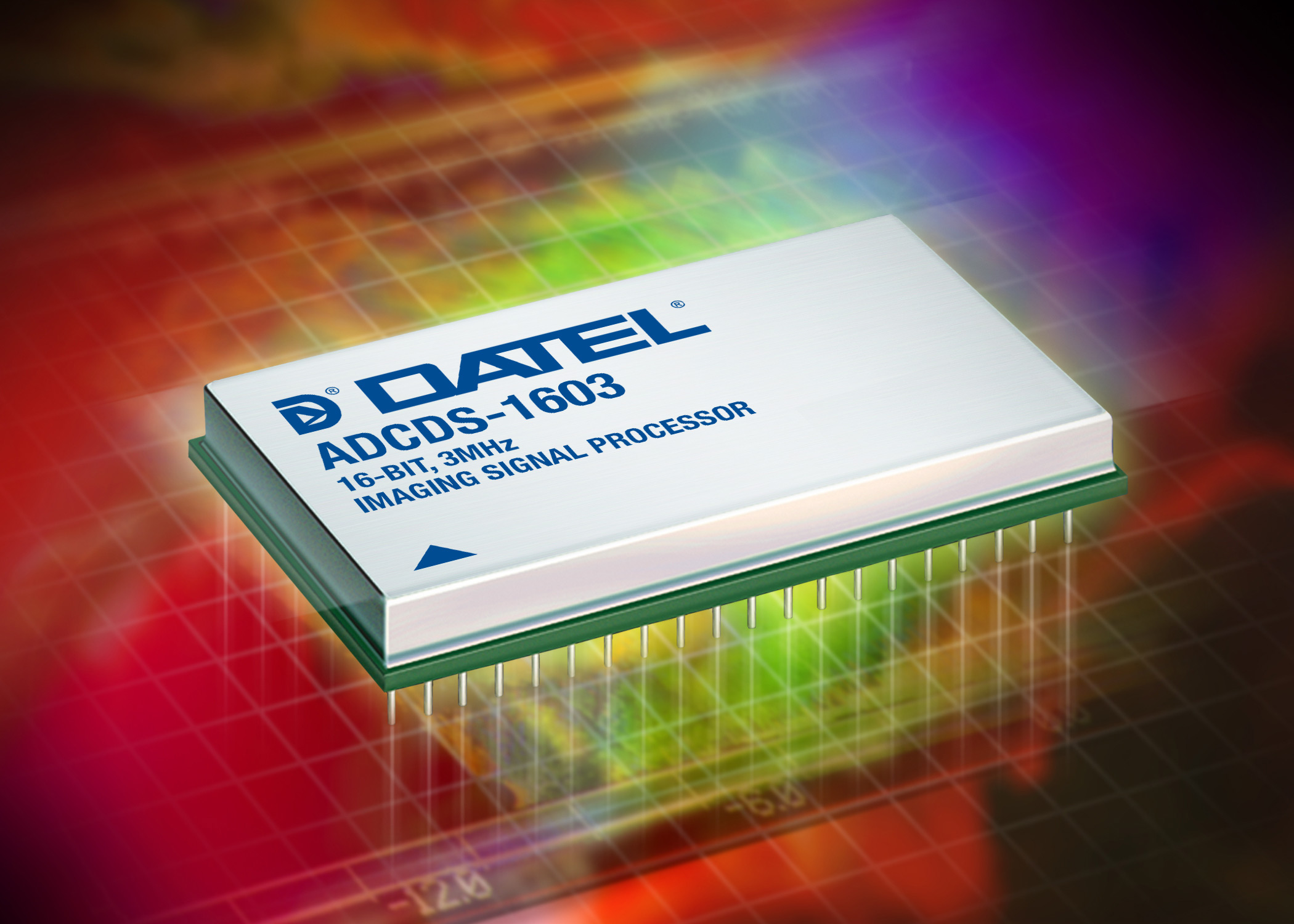

DATEL has introduced the first Imaging Signal Processor to combine true 16-Bit resolution with 3 Megapixels / second (MPPS) performance. The ADCDS-1603 provides an easy-to-interface, functionally complete, low-cost solution for electronic imaging applications that use Charge Coupled Devices (CCDs) as their photo-detectors.

Typical applications for the high-performance ADCDS-1603 can be found in Digital Still Cameras, Digital Video Camcorders, portable CCD image devices, plus a wide range of medical and industrial imaging products.

The ADCDS-1603 has a class-leading signal-to-noise-ratio of 85dB at 3MHz with no latency delay. The small, fully integrated 40-pin TDIP package incorporates a user configurable input amplifier, a correlated double sampler (CDS), and a 16-Bit sampling analog-to-digital converter (ADC). Further features of the user-friendly design include edge triggering, gain adjust, offset adjust, a precision +2.0V reference and a programmable analog input bandwidth function. Overall power consumption is just 500mW typical.

Central to the ADCDS-1603's high performance is a unique high-speed, high-accuracy, CDS circuit that eliminates the effects of residual charge, charge injection and kT/C noise on the output capacitor of the CCD. This produces a 'valid video' output signal that the ADCDS-1603 digitizes using its integral high-speed, low-noise sampling ADC.

Two variants of DATEL new Imaging Signal Processor are available: The ADCDS-1603 is designed for commercial applications and has an operating temperature range of 0ºC to +70ºC, while the ADCDS-1603EX has an operating temperature range of -55ºC to +125ºC making it suitable for military and more demanding commercial applications.


DATEL, Inc. is a leading supplier of High Precision Data Acquisition Components and DC to DC converters. Our leadership status in high-performance data acquisition components is unchallenged, driven in large part by our engineering expertise to develop solutions with outstanding electrical performance, small packaging, low power consumption and ease of use. These products employ five basic technologies: monolithic IC, thin-film hybrid, thick-film hybrid, SMT technologies and discrete component circuit.

DATEL's DC DC converter product line includes non-isolated point-of-loads dc/dc, switching regulators as well as a complete line of industry standard brick packages (Sixteenth-Brick, Eighth-Brick, Quarter-Brick, Half-Brick and Full-Brick) and railway dc-dc converters.

Diminishing Manufacturing Sources and Material Shortages (DMSMS): We have the solution to your Diminishing Manufacturing Sources and Material Shortages (DMSMS) component problems. DATEL has the design knowledge and manufacturing capabilities to provide alternative solutions to on-going and mature defense and aerospace programs which suffer from Diminishing Supplier-Base issues.
