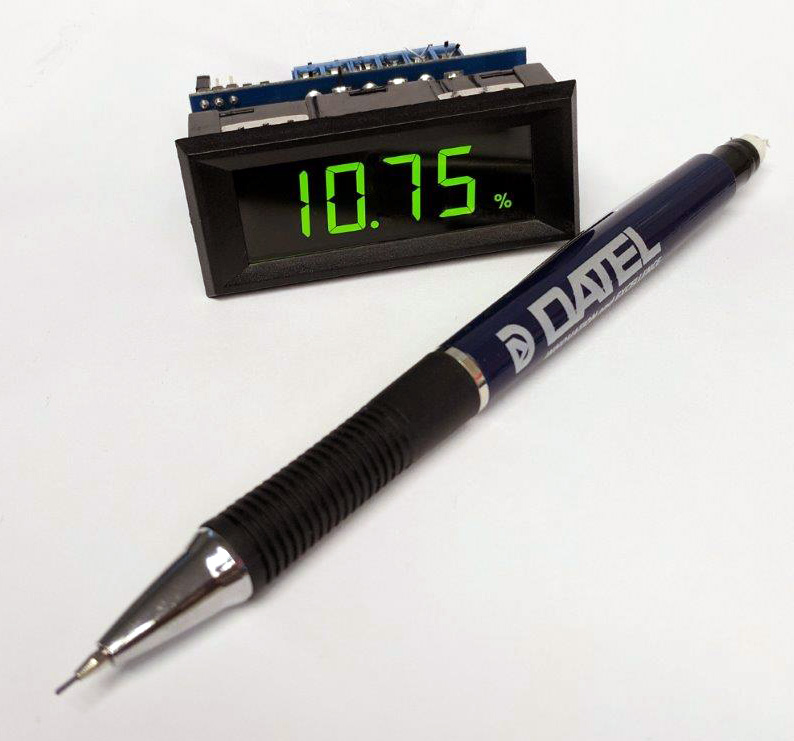

New Series of Low-Cost, Adjustable, Voltage-Input Digital Process Meters
The PM-35LC-ADV is a new series of adjustable, voltage-input Digital Process Meter from DATEL. This series operates from industry standard 24Vdc (@40mA, max.) and includes a snap-in bezel that allows for quick setup and installation. It is a low cost alternative and an ideal replacement for many OEM panel meters found in industrial applications.
- February 12, 2018
- Low-cost replacement for OEM process DPMs
- High contrast green LCD display
- 3½ Digit, 0.45" (11.4mm) display
- Three input ranges: 0 - ±200mV; 0 - ±5V; and 0 - ±10V
- 25-Turn gain, span, and offset potentiometers
- Differential readings adjustable from 10 to 1999
- Miniature 2.5 x 1.1 inch package (64 x 28mm)
- Screw-terminals for power and input connections
- Easy snap-in bezel simplifies panel mounting
- Operates from single 24Vdc regulated power
- Standard °C; °F; PSI; or % annunciators
- Optional annunciators for Volts; Amps; kW; or PF
- User selectable decimal points and engineering units
- Low-cost replacement for OEM process DPMs
DATEL, Inc. has announced the introduction of the PM-35LC-ADV series, a new line of Digital Panel Meters with four user-selectable annunciators for displaying Volts ("V"); Amps ("A"); kilowatts ("kW"); or Power Factor ("PF"). Optional models can be configured to display degrees Celsius ("°C") or Fahrenheit ("°F"); pounds per square inch ("PSI"); or percent ("%"). Each unit features PC-board style jumpers that simplify user selection of input signal range, decimal point position and engineering unit annunciators. This series is specified to operate over the temperature range of 0 to +50°C.
Samples for all models of this new series are available upon request.
In addition to our standard product offerings, DATEL has the solution to your Diminishing Manufacturing Sources and Material Shortages (DMSMS) component problems. DATEL is frequently approached by our customers to help them resolve obsolescence, End-of-Life (EOL) and/or reduced access to qualified legacy products. DATEL has the design knowledge and manufacturing capability/experience/expertise to provide alternative solutions to on-going and mature defense and aerospace programs which suffer from Diminishing Supplier-Base issues.
Further editorial information from:
Roy Cabral
Marketing Manager
DATEL, Inc.
Tel: 508-964-5231 (office)
e-mail: roycabral@datel.com
Contact details for publication:
DATEL
120 Forbes Boulevard, Suite 125
Mansfield, MA 02048-1150, USA
Tel: +1-508-964-5131
e-mail: email: jimflynn@datel.com
About DATEL (www.datel.com)
DATEL is an employee owned US-based company that is dedicated to the commercial, medical, industrial, military and aerospace market solutions. We are an employee-owned, US-based company, dedicated to commercial, medical, industrial, military and aerospace market solutions. For several decades DATEL has worked closely with its customers to provide high quality industrial and MIL Certified 883 products which meet specific and stringent application, screening and environmental demands.
DATEL's data acquisition, including A/D and D/A Converters, CCD Signal Processors / Imaging Converters, Single-Package multi-Channel Data Acquisition Systems, Custom System-in-a-Package (SIP) Hybrid Solutions, Sample/Hold Amplifiers and other products are designed and manufactured in a MIL-PRF-38534 hybrid certified fabrication facility located in Mansfield, Massachusetts, USA. DATEL product offering has grown to become one of the industry's broadest, designed to meet the ever-changing requirements of military, HI-REL, medical, scientific and industrial applications. DATEL is ISO-9001 certified, and ITAR registered.
