New Data Acquisition and Power Products & News

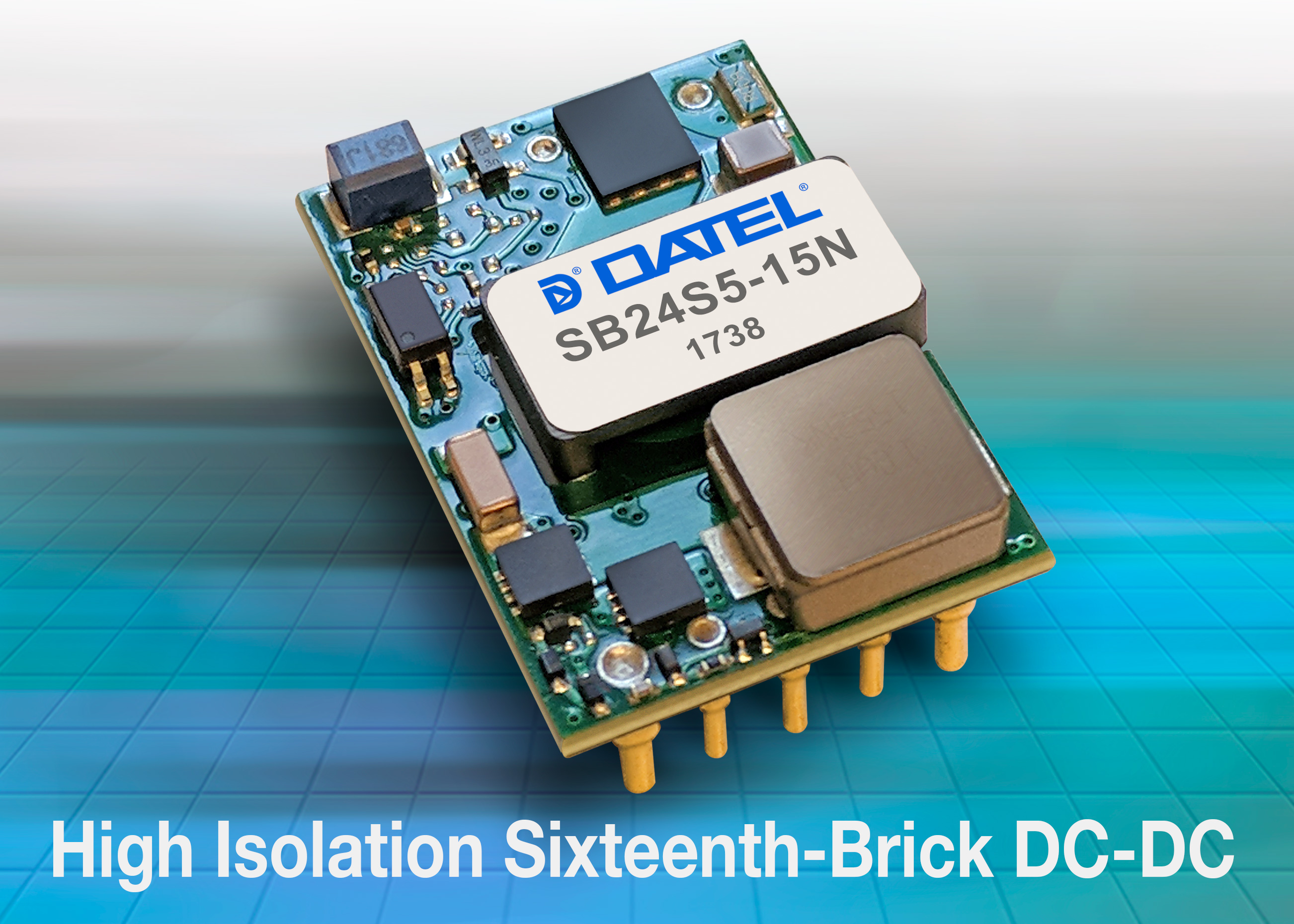

DATEL's New High Isolation Sixteenth-Brick DC-DC Converters
DATEL's SB (16th-brick) of converters not only feature ultra-wide input voltage ranges, but also offer optional high isolation (2828VDC) in an industry standard package. Industry-popular tightly regulated outputs are available: 2.5, 3.3V, 5V, 12V and 15V.
- August 27, 2017
- Industry standard DOSA - compatible footprints
- Precisely regulated outputs
- Fixed switching frequency
- 4:1 input voltage ranges
- Remote ON/OFF - positive or negative and Remote Sense
- -40°C to +123°C operating temperature range
- Full protection (OTP, OCP, OVP, UVLO and auto-restart)
- Optional baseplate 0.500" (12.7mm) tall (only with 2250VDC standard isolation)
- Withstands 100V input transients (50V for 9-36Vin models)
- Also available with a baseplate, 2:1 Vin, SMD package and higher power density
- Optional SMD-mountable construction
- Output voltage trim range: ±10%
- On-board input differential LC filter
- Meets UL94, V-0 flammability rating
- Designed to meet UL/CSA 60950-1, and EN 55022TUV
- Read more about New High Isolation Sixteenth-Brick DC-DC Converters
150 Watt Quarter-Brick, QB Series of DC-DC Converters
DATEL's QB family offers up to 150 watts of output power in an industry standard quarter-brick package/pin-out. This series features: ultra-wide input voltage ranges of 9 to 36 or 18 to 75VDC, high efficiency and isolation of 2250VDC in an encapsulated package with integrated baseplate, while providing a precise regulated output voltage.
- August 27, 2017
- Industry standard quarter-brick package/functions
- 4:1 Input voltage range
- Efficiency up to 92%
- Remote On/Off
- Fixed switching frequency
- Fully regulated output voltages
- Low no-load power consumption
- Continuous short circuit protection
- -40°C to +105°C Operating temperature range
- Voltage/current/over-temperature protection
- Designed to meet shock vibration per MIL-STD-810F/EN61373
- Designed to meet CE mark 2014/30/EU/ UL60950-1, N60950-1 and IEC60950-1
- Read more about 150 Watt Quarter-Brick, QB Series of DC-DC Converters

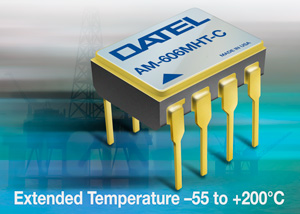

DATEL High Temperature Dual Op Amp
The AM-606HT series are dual Operational Amplifiers that combine high speed performance with the advantages of precision in a single package. This series of Amplifiers with guaranteed performance up to +200°C is the best choice for down-hole, geothermal exploration, undersea cabling, hot engines, aerospace and harsh environmental applications.
August 2016
- Extended temperature -55 to +200°C
- Unity-gain stable
- Wide bandwidth: 28MHz
- High Slew rate: 250V/µs
- Drives capacitive loads
- Low voltage operation: ±5V to ±15V
- Low supply current: <10mA Qualified and Characterized for more than 1,000-hour operating life 8-pin SMT (GHT) or DIP (MHT) hermetic sealed ceramic package
- Read more about AM-606HT Series are Dual Operational Amplifiers

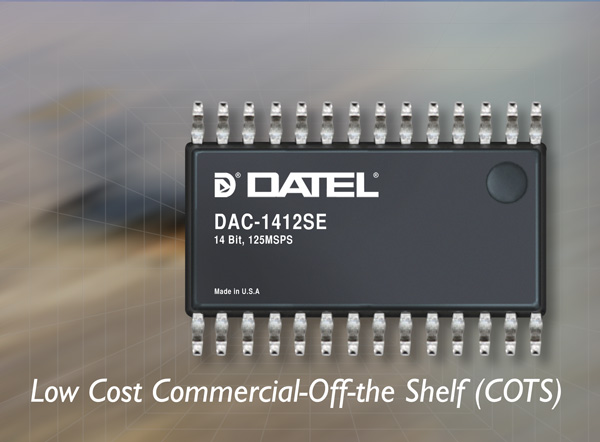

DATEL, 14-bit 125MHz Digital-to-Analog Converter
The DAC-1412 is a 14-bit D/A converter that offers up to 125MHz conversion rate from a segmented current source topology that is built on an advanced CMOS process and delivers a low glitch energy output from 2mA to 20mA. Housed in a small 28-pin plastic TSSOP package, it is the best choice for all military, airborne, and aerospace applications that can utilize a low cost Commercial-Off-the Shelf (COTS) component such as the DAC-1412.
July 2016
- 14-bit, resolution
- 125MHz Samples per second
- 35ns settling time to ±0.05%
- Internal +1.2V temperature compensated bandgap reference
- External reference option
- 28-pin plastic TSSOP package (SE, SM models)
- Operates from single +3.0 to +5.0V supply
- Low power, 76mW (+3V supply), 150mW (5V supply)
- 100% testing over temperature
- Read more about DAC-1412: 14-bit 125MHz Digital-to-Analog Converter

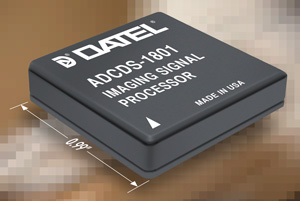

DATEL Analog Front End for CCD Imaging Applications
The ADCDS-1801 is an 18-bit, industry-leading, integrated solution for CCD Signal Processing. This series of analog front-end imaging converters are designed specifically for the very high-resolution imaging applications.
June 23, 2016
- Internal 18-bit resolution A/D DATEL ADCDS-1801 is an 18-bit, integrated solution for CCD Signal Processing
- Internal correlated double sampler (CDS)
- 1.250 Mega-Samples per second
- Analog front-end programmable bandwidth
- Low-profile 44-pin plastic SMT Quad-Pak
- Extended temperature range -40°C to +125°C
- 31µV RMS noise @ 1.25MPPS
- Resistor programmable gain adjustment from 0dB to 15.5dB
- User selectable digital output supply voltage range
- Read more about ADCDS-1801 Analog Front End for CCD Imaging

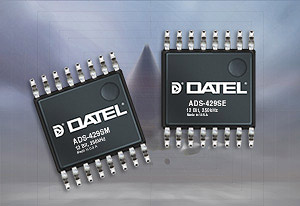

DATEL ADS-429, 8-Channels, Low Power Analog-to-Digital Converter
The ADS-429 is a 12-bit, 250kSPS multi-channel SAR Analog-to-Digital converter housed in a 16-pin plastic TSSOP package. It is the best choice for all military, airborne, and aerospace applications that can utilize a low cost Commercial Off The Shelf (COTS) component such as the ADS-429
May 24, 2016
- 8 single-ended analog input channels
- 250kHz Samples per second
- Rail-to-rail analog inputs
- Single supply from +2.7V to +5.25V
- SPI compatible serial interface
- 3mA of operating supply current
- 9mW of power dissipation from +3 volts supply
- 8µA supply current in power down mode
- Small 16-pin plastic TSSOP package
- 100% testing over temperature
- Read more about ADS-429 Analog-to-Digital Converter

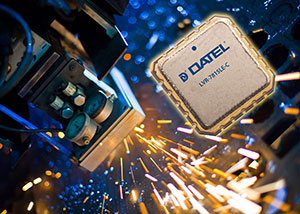

DATEL LVR-7815 Positive Linear Voltage Regulator
The LVR-7815 is the first of a family of positive linear voltage regulators offered by DATEL that have guaranteed performance from -55 to +125°C. It is your best choice for all military, aerospace, harsh, and demanding applications.
June 20, 2015
- Hermetically sealed surface mount package
- Impervious to humidity
- Thermally optimized package
- Built-in overload protection
- Short circuit current limiting
- 100% tested over the full military temp range
- Compatible with DSCC/DLA 5962-88748
- RoHS or non-RoHS versions available
- Read more about LVR-7815 Positive Linear Voltage Regulator

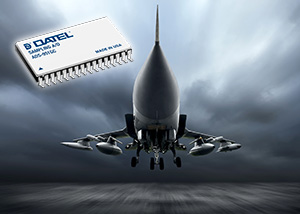

DATEL ADS-951 Analog to Digital Converter
The First 18-Bit, 1MHz ADC in the industry with performance from -55°C to +125°C, ideal for all precision, ruggedized, high reliability, and demanding applications.
November 20, 2014
- 18-bit resolution
- 1 MHz sampling rate
- Edge-triggered, no pipeline delays
- Ideal for burst or multiplexed application
- No missing code over the entire temperature range
- Lowest Offset and Gain Drift in the market
- Read more about ADS-951 Analog to Digital Converter
RELIABLE VENDORS ARE CRITICAL TO THE BOTTOM LINE
A DATEL Case Study
April 4, 2014
- Read more about A DATEL Case Study

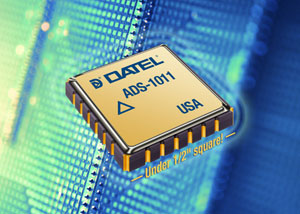

DATEL ADS-1011 Analog to Digital Converter
Hermetically Sealed for Hi-Rel, Precision Applications
March 25, 2014
- 10-bit resolution
- High-reliability version available
- Less than 2mW @ 50kHz throughput
- 2.5µs conversion time
- +2.7 to +5.5 Vdc operation
- Read more about ADS-1011 Analog to Digital Converter

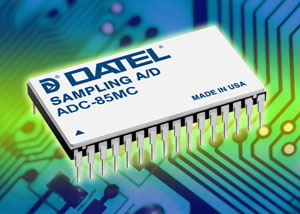

DATEL ADC-85 Analog to Digital Converter
A Reliable Choice for Precision Applications
February 3, 2014
- 12-bit resolution
- MIL-STD-883 high-reliability versions available
- Five input voltage ranges
- 8µs conversion time
- ½ LSB of Linearity over the full temperature range
- Read more about ADC-85 Analog to Digital Converter

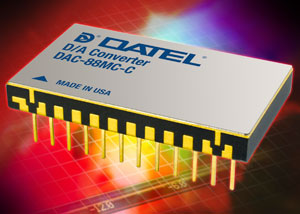

DATEL DAC-88 Digital to Analog Converter
November 7, 2013
- 12-bit resolution
- MIL-STD-883 high-reliability versions available
- Input register
- 3µs fast output settling time
- Guaranteed monotonicity over full temperature range
- Read more about DAC-88 Digital to Analog Converter

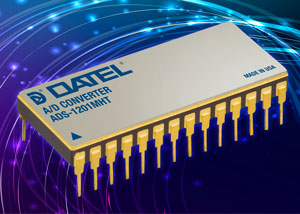

ADS-1201 : Analog-to-Digital Converter for High Temperature Applications
May 1, 2013
- 12-bit resolution
- 1MHz sampling rate
- Extended temperature range -55°C to 200°C
- 28-pin DDIP or SMT package
- No missing codes
- Read more about 12-Bit Analog-to-Digital Converter: ADS-1201HT

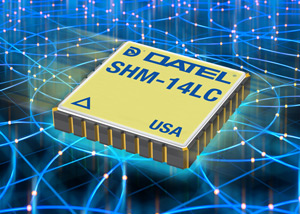

SHM-14: World's fastest stand-alone 14-bit sample-and-hold amplifier acquires in 35 ns to 0.003% accuracy
December 8, 2011
- Fast acquisition time:
- 10ns to ±0.1%
- 25ns to ±0.012%
- 35ns to ±0.003%
- ±0.0012% Nonlinearity
- Fast acquisition time:
- Read more about 14-Bit Sample-and-Hold Amplifier: SHM-14
- Der weltweit schnellste 14-bit-Sample-and-Hold-Verstärker in Stand-Alone-Ausführung erfasst einen Datenwert binnen 35 ns mit einer Genauigkeit von 0,003%
- L’échantillonneur - bloqueur 14 bits autonome le plus rapide du monde acquiert en 35 ns avec une précision de 0,003%
- 全球最快14位独力取样保持放大器获35 ns 至0.003%精确度
- セトリング時間35ns/0.003%精度の超高速独立型の14ビットサンプル/ホールドアンプ

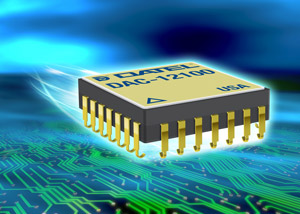

DAC-12100: Low cost, ultra-high speed 12-bit digital to analog converter suits high reliability military and aerospace applications
October 11, 2011
- 100MHz conversion rate
- Low power, 650mW, typical
- TTL/CMOS compatible inputs
- 20ns settling time
- Full 883 and LM/QL versions available
- Read more about High Speed 12-bit Digital to Analog Converter: DAC-12100
- Kostengünstiger, schneller 12-Bit-D/A-Wandler für hochzuverlässige Militär- und Luft-/Raumfahrt-Anwendungen
- Un convertisseur numérique/analogique 12 bits faible coût ultra-rapide s’adresse aux applications militaires et aérospatiales haute fiabilité
- 低成本、超高速的12位数模转换器适用 各种高可靠性的军工和航空应用
- 高信頼性の軍用や航空宇宙の用途に適した低価格、超高速12ビットD/Aコンバータ

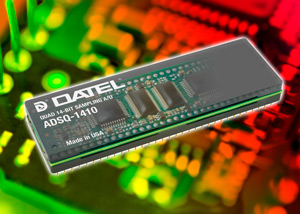

ADSQ-1410: DATEL Quad Sampling A/D converter combines low noise and excellent dynamic performance for a wide range of image processing applications
June 16, 2009
- Functionally complete, quad 14-Bit, 10 MSPS A/D converter
- 0.5 LSB RMS DC noise with no missing codes
- Excellent dynamic performance with SNR of 80dB
- Choice of SMT or TDIP through-hole packages
- Read more about Quad Sampling A/D converter: ADSQ-1410

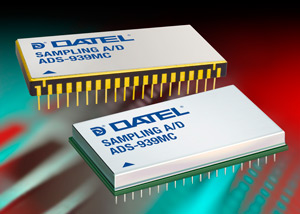

ADS-939 Sampling A/D Converter Delivers True 16-Bit Performance at 10MHz in a Fully Integrated Package
Small, functionally complete design requires no external components and promotes high reliability
- August 20, 2007
- 16-bit resolution
- 10MHz sampling rate
- Functionally complete
- No missing codes over full military temperature range
- Edge-triggered
- ±5V, ±12V or ±15V supplies, 3.0 Watts
- Small, 40-pin, ceramic TDIP
- 82dB SNR, -86dB THD
- Ideal for both time and frequency-domain applications
- Read more about 16-Bit Sampling A/D Converter: ADS-939

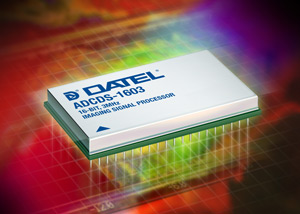

ADCDS-1603 Imaging Signal Processor Provides High-Performance Functionality, Simple Interface, for a Complete Solution
16-Bit, 3 megapixels/second imaging signal processor
- October 10, 2006
- 16-bit resolution
- 3MPPS throughput rate (16-bits)
- Functionally complete
- Very low noise
- Excellent signal-to-noise ratio (85db)
- Edge triggered
- Small, 40-pin, TDIP package
- Low power, 500mW typical
- Low cost
- Programmable analog input bandwidth
- Read more about Imaging Signal Processor: ADCDS-1603
Company News
IN MEMORIAM:
Nicholas George Tagaris Founder and former President/CEO of DATEL, Inc. passed away on Sept. 24, 2015 at his home in Walpole, Mass. He was born on Oct. 1, 1935 in Greece and came to America after graduating high school to attend MIT's engineering program. He went on to start DATEL, Inc. in which he was at the helm as president/CEO for well over 40 years. In that time, the company grew to have subsidiaries in Tokyo, London, Paris, Munich and Shanghai as well as the headquarters based in Mansfield, Massachusetts. Mr. Targaris was a leader in the electronics industry and he will be missed by us at DATEL and many others.
DATEL ACQUISITION NOTICE
April 1, 2015 Mansfield, MADATEL management announced today the acquisition of the DATEL Business Unit from Murata Power Solutions. The business will operate as DATEL Incorporated, an employee-owned, US based corporation.
The entire management team as well as engineering and technical staff, marketing, sales, and production personnel will transition to DATEL Inc. Company headquarters and production facilities will remain at 11 Cabot Boulevard, Mansfield, MA.
DATEL was founded in 1974 and during its 40 plus year history has been owned by Intersil, G.E., C&D Technologies, and most recently by Murata Power Solutions. Through each of these acquisitions the DATEL Business Unit has continued to be a leader in the Data Acquisition and hybrid multi-chip markets providing products for military, medical, high-reliability, industrial, and scientific applications. Our committed staff of professionals has made the DATEL brand name recognized throughout the world for engineering excellence, quality products and unmatched customer support.
Operating as a private company, DATEL will be better positioned to serve its customers and emerging markets using existing, as well as new, sales channels.
Download Acquisition Notice.
